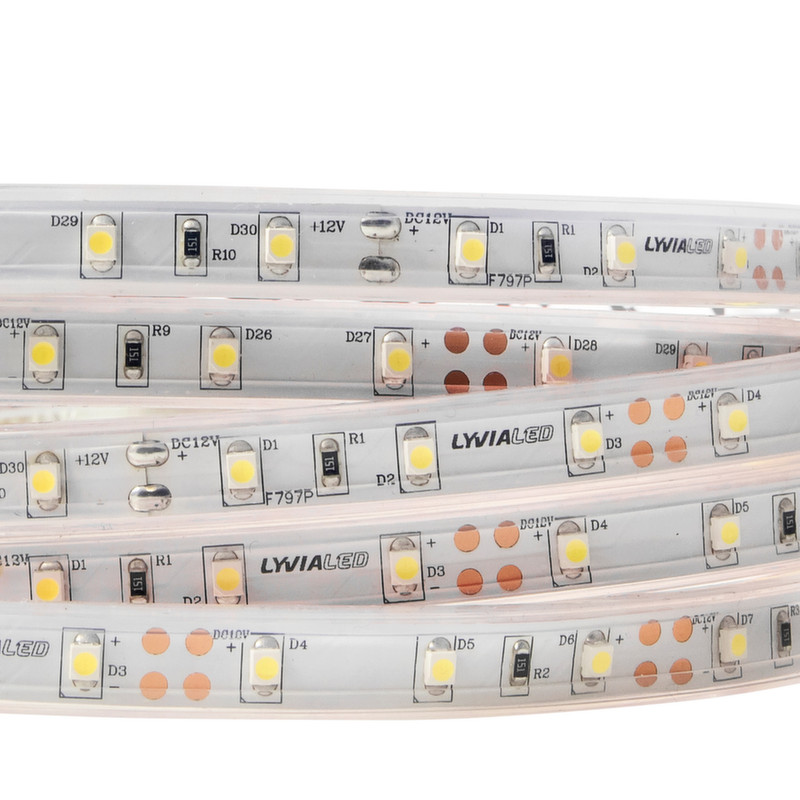

WATERPROOF LOW CONSUMPTION STRIP

IP67

12V

CRI 80

CODE: BLR.125

Professional led strip.
With silicone sheath shockproof and insulated at the ends.
To improve heat dissipation it is recommended to mount the strips on our aluminium profiles.
Due to the high heat output, the strip must be mounted on a material with good thermal dissipation (eg metal); we recommend our aluminum PA Series profiles.
Bag package comprising:
• 5 m reel
• 2 power cable

3528 SMD Led - 60 LED/m
Beam angle: 120°
Minimum cutting section: 50 mm
Extendible max: 5,000 mm
Dimmable
Colour rendering: >80
Protection degree: IP67, for outdoor use
Working temperature: -25 +60°C
Storage temperature: -40 +80°C
Rear adhesive 3M
Material: copper 2 layer
Substrate colour: white
Average life: 25,000 hours
Led operative life: L70B50

TAG

Technical data

Articles and details

	Article	Led colour	Colour temp.	Volt	Led type	Led/m	W/M	LM/M	LM/W	IP
	BLR.125.W	Bianco Freddo	6500°K	12V DC	3528 SMD	60	4,8	587	122	67
-	BLR.125.D	Bianco Diurno	4000°K	12V DC	3528 SMD	60	4,8	250	52	67
	BLR.125.3W	Bianco Caldo	3000°K	12V DC	3528 SMD	60	4,8	544	113	67
	BLR.125.XW	Bianco Extra Caldo	2700°K	12V DC	3528 SMD	60	4,8	492	102	67
