LOW CONSUMPTION STRIP

IP20

12V

CRI 90

CODE: BLR.122

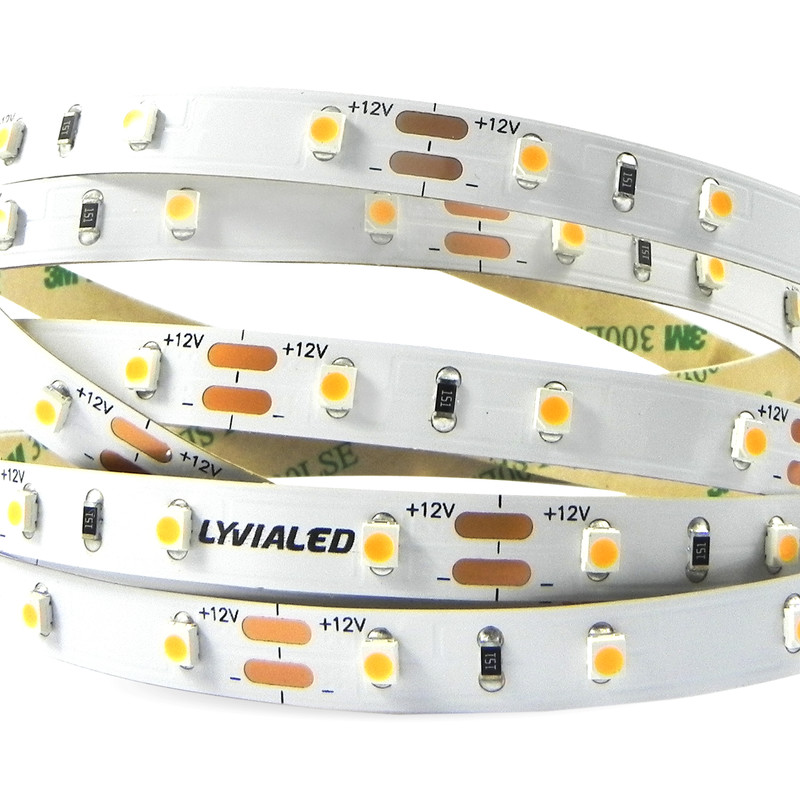

Professional led strip.
Due to the high heat output, the strip must be mounted on a material with good thermal dissipation (eg metal); we recommend our aluminum PA Series profiles.
Bag package comprising:
• 5m reels
• 2 power cord

3528 SMD Led - 60 LED/m
Selected bin colour
Beam angle: 120°
Minimum cutting section: 50 mm
Extendible max: 5,000 mm
Dimmable
Colour rendering: >90
Protection degree: IP20, for indoor use
Working temperature: -20 +45°C
Storage temperature: -20 +80°C
Rear adhesive: 3M
Material: copper 2 layer
Substrate colour: white
Average life: 36,000 hours
Led operative life: L70B50

Video

Technical data

Articles and details

Article	Led colour	Colour temp.	Volt	Led type	Led/m	W/M	LM/M	LM/W	IP
BLR.122.W	Bianco Freddo	6500°K	12V DC	3528 SMD	60	4,8	320	66	20
BLR.122.D	Bianco Diurno	4000°K	12V DC	3528 SMD	60	4,8	384	80	20
BLR.122.3W	Bianco Caldo	3000°K	12V DC	3528 SMD	60	4,8	290	60	20
