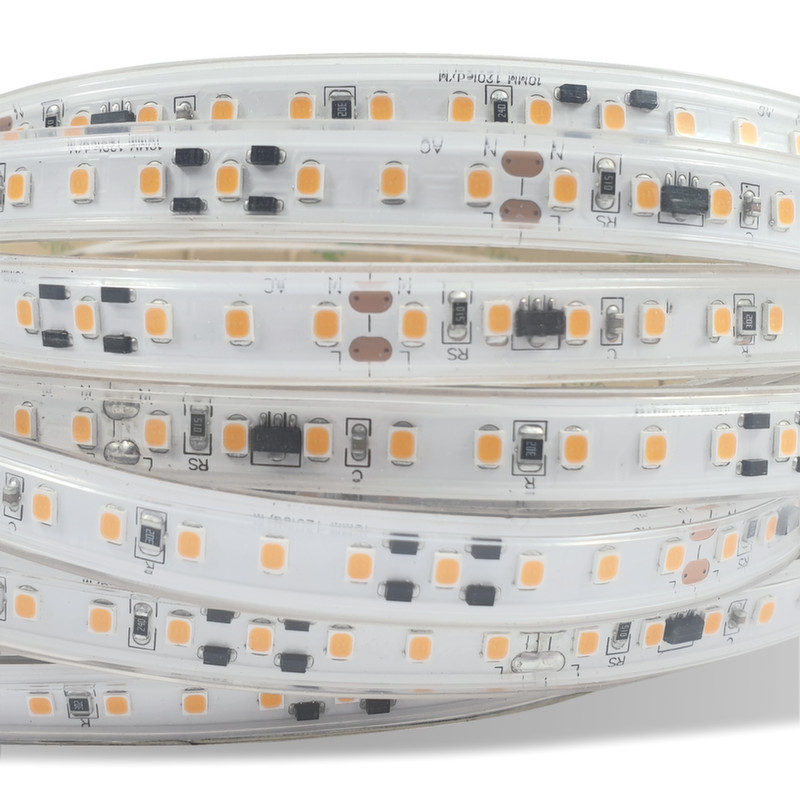

QUASAR LED - STRIP 230V 5M

IP65

230V

CRI 80

CODE: HVLR5120

Compared to systems with traditional led strips, with Quasar Led it is possible to obtain considerable advantages in terms of cost reduction: no power supply, in case of long sections no connection / welding.
• Long and continuous strip: they are supplied in reels up to 50 meters that can be powered in a single solution.
• Minimum cutting section: with only 100 mm of cutting section, they avoid the waste of unused parts of the strip.
• High efficiency: they reach luminous efficiencies of 100 lm / W
• Dimmable: they can be dimmed and are designed to achieve a very low flicker (not visible to the human eye).
• No power supply: the strip must be connected directly to the 230V 50Hz mains

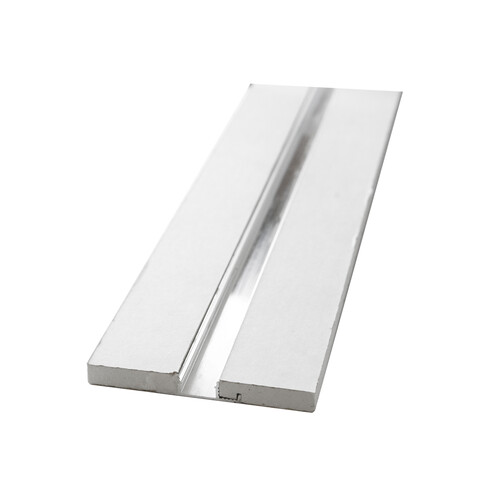

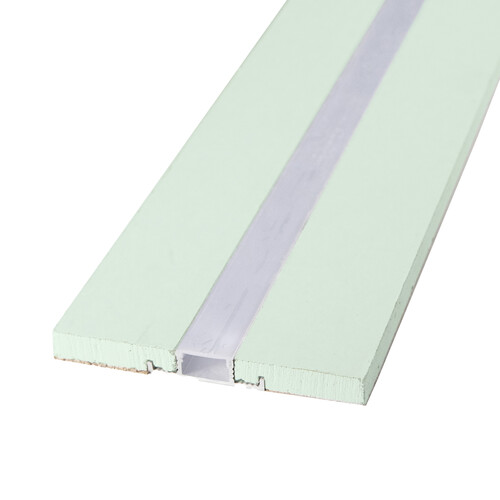

Given the considerable production of heat it is necessary to mount the strip on material with good thermal dissipation (ex metal); we recommend our PA series aluminum profiles.
The package includes:
• 5 m reel
• 1 power cable already installed
• end cap already installed

LED type 2835 SMD - 120 LED / m
Selected bin color
Diffusion angle: 120 °
Minimum cutting section: 100 mm
Max extendable: 50 meters
Dimmable
Color rendering:> 80
Degree of protection: IP65, for outdoor use
Silicone sheath, hygroscopic, high dielectric power, low VOC content
Double insulation
Operating temperature: -20 + 45 ° C
Storage temperature: 0 + 60 ° C
Rear sticker: 3M - 9495LE
Material: 2-layer copper / polyamide
Support color: white
Average life: 35.000 hours
Led operative life: L90B10

TAG

LED Energy saving High Efficiency Outdoor IP65 Quasar No Power Supply Dimmerable

Technical data

Articles and details

Article	Led colour	Colour temp.	Volt	Led type	Led/m	W/M	LM/M	LM/W	IP
HVLR5120.W	Bianco Freddo	6.000°K	230V	2835 SMD	120	18,5	1.800	100	65
HVLR5120.XW	Bianco Extra Caldo	2.700°K	230V	2835 SMD	120	18,5	1.650	89	65
HVLR5120.D	Bianco Diurno	4.000°K	230V	2835 SMD	120	18,5	1.800	100	65
HVLR5120.WW	Bianco Caldo	3.000°K	230V	2835 SMD	120	18,5	1.800	100	65
