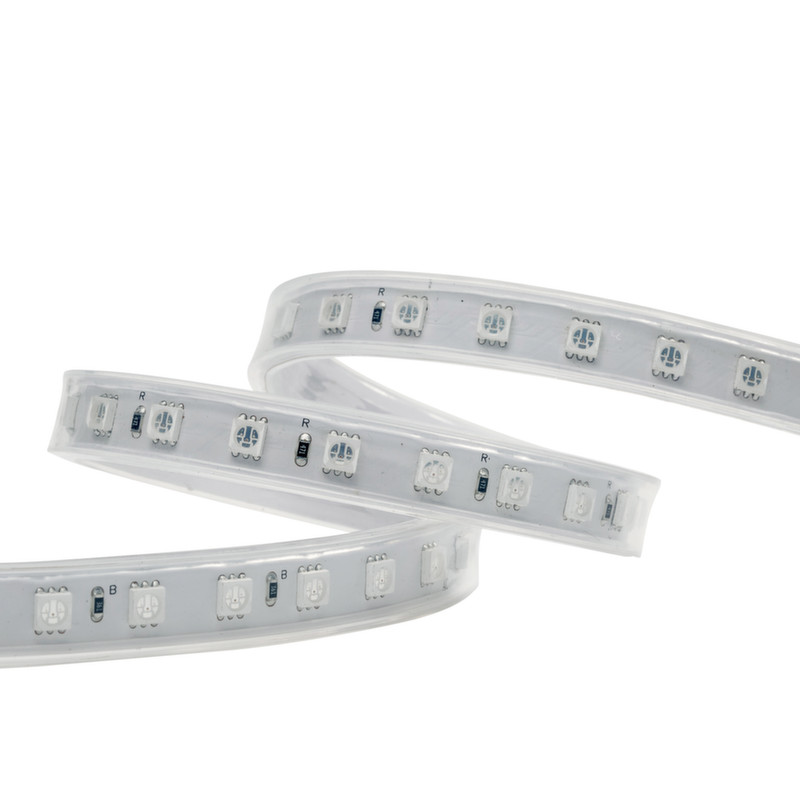

RGB QUASAR LED - STRIP 230V 50M

IP67

230V

CODE: HVLR120.RGB

Compared to systems with traditional led strips, with Quasar Led it is possible to obtain considerable advantages in terms of cost reduction: no power supply, in case of long sections no connection / welding.
• Long and continuous strip: they are supplied in reels up to 50 meters that can be powered in a single solution.
• Dimmable: they can be dimmed and are designed to achieve a very low flicker (not visible to the human eye).
• No power supply: the strip must be connected directly to the 230V 50Hz mains
ALSO USED FOR SINGLE COLORS: RED, GREEN AND BLUE
It is possible to change color, dim and set light sequences using the appropriate controller (mandatory).
If you connect the common and a single R, G or B channel you will get a single color.
Given the considerable production of heat it is necessary to mount the strip on material with good thermal dissipation (ex metal); we recommend our PA series aluminum profiles.
The package includes:
• 50 m reel
• end cap already installed

LED type 5050 SMD - 50 LED / m Diffusion angle: 120 ° Minimum cutting section: 500 mm Max extendable: 50 meters Dimmable: Yes Color rendering:> 80 Degree of protection: IP67, for outdoor use
Double insulation Silicone sheath, hygroscopic, high dielectric power, low VOC content Operating temperature: -20 + 45 ° C Storage temperature: 0 + 60 ° C Material: 2-layer copper / polyamide Support color: white Average life: 40.000 hours
Operative life: L80B10
