Led squared ceiling lamp

IP54
CRI 80

CODE: TRITONQ

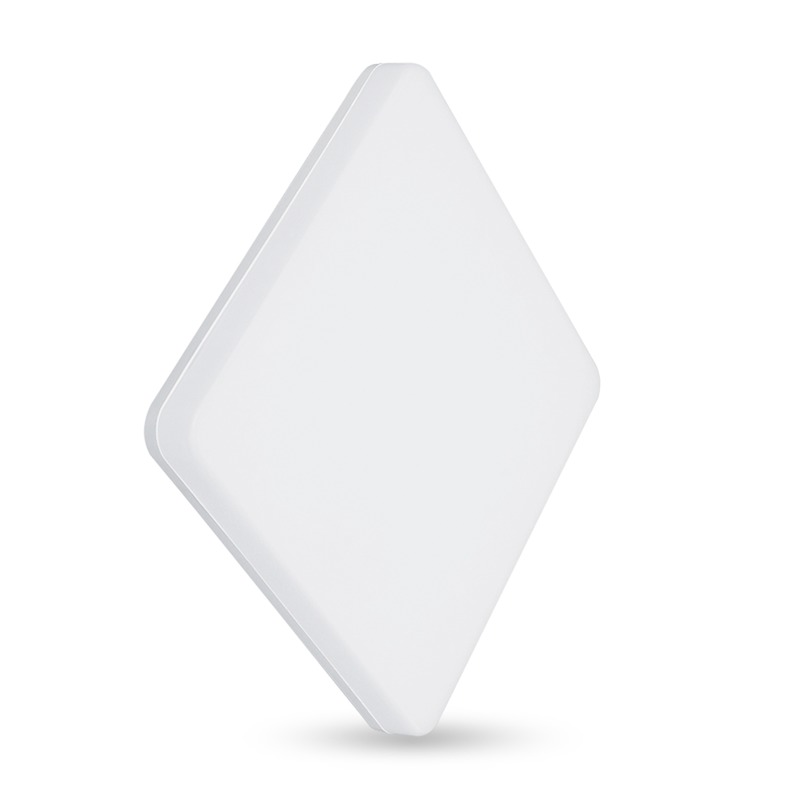

Squared ceiling lamps with LED technology.
Innovative technology “colour change” allows to select desire colour temperature (3000 - 4000 - 5700°K).
The essential design and “minimal” lines allow a very wide use of these ceiling lamps, which can be installed on the ceiling or wall.
Plate with high luminous LEDs for a uniform diffusion of light on the entire surface.
White polycarbonate body with high mechanical resistance.
High diffusion satin diffuser in polycarbonate.
“No Flicker” IC integrated driver.
Equipped with rear bracket for wall mounting.
Junction box for electrical connections.
Change colour selector.
Power supply: 230V ~ 50Hz
Colour rendering: >80
Luminous efficiency: 120 lm/W
Power factor: >0.5
Average life: 30,000 hours
Operating temperature: -20°C + +40°C
Insulation class: II
Beam angle: 120°
Protection degree: IP54, for outdoor use
Shockproof: IK08
Photo-biological safety: RG 0
Power supply: 230V ~ 50Hz
Colour rendering: >80
Luminous efficiency: 120 lm/W
Power factor: >0.5
Average life: 30,000 hours
Operating temperature: -20°C + +40°C
Insulation class: II
Beam angle: 120°
Protection degree: IP54, for outdoor use
Shockproof: IK08
Photo-biological safety: RG 0

TAG

triton

Technical data

Articles and details

Article Dimensions Total consumption Protection degree Color Luminous flux Angle of diffusion
TQ22 220 x 220 x 50 mm 12W IP54 3000-4000-5700°K 1.350 lm 120°
TQ28 280 x 280 x 50 mm 18W IP54 3000-4000-5700°K 2.100 lm 120°
TQ33 330 x 330 x 50 mm 24W IP54 3000-4000-5700°K 2.900 lm 120°
