QUASAR LED - STRIP 230V IP67 50M

IP67
230V
Dimmer
CRI 80

CODE: HVLRM120

For seaside atmosphere.
Compared to systems with traditional led strips, with Quasar Led it is possible to obtain considerable advantages in terms of cost reduction: no power supply, in case of long sections no connection / welding.
• Long and continuous strip: they are supplied in reels up to 50 meters that can be powered in a single solution.
• Minimum cutting section: with only 100 mm of cutting section, they avoid the waste of unused parts of the strip.
• High efficiency: they reach luminous efficiencies of 100 lm / W
• Dimmable: they can be dimmed and are designed to achieve a very low flicker (not visible to the human eye).
• No power supply: the strip must be connected directly to the 230V 50Hz mains

Given the considerable production of heat it is necessary to mount the strip on material with good thermal dissipation (ex metal); we recommend our PA series aluminum profiles.
The package includes:

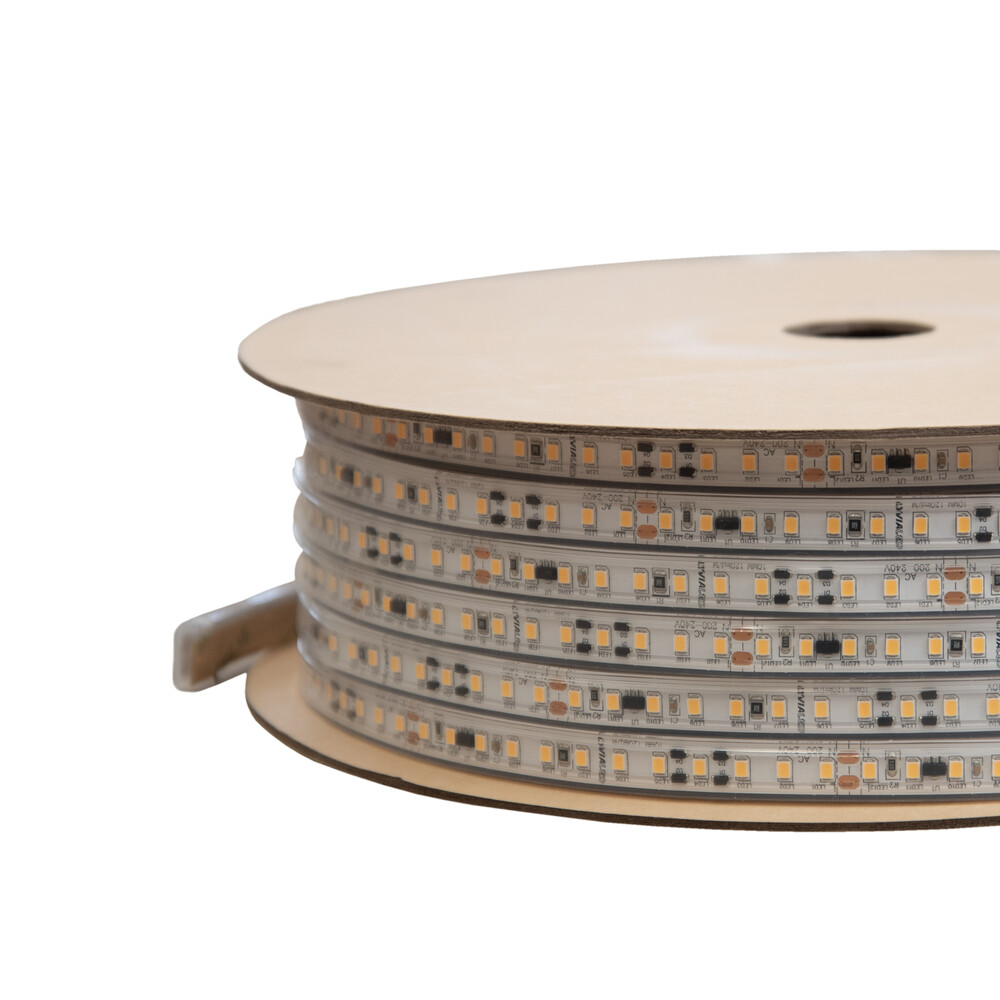

• 50 m reel
• end cap already installed
LED type 2835 SMD - 120 LED / m
Selected bin color
Diffusion angle: 120 °
Minimum cutting section: 100 mm
Max extendable: 50 meters
Dimmable
Color rendering:> 80
Degree of protection: IP67, for outdoor use
Silicone sheath, hygroscopic, high dielectric power, low VOC content
Double insulation
Operating temperature: -25 +45°C
Storage temperature: -25 +45°C
Rear sticker: 3M
Material: 2-layer copper / polyamide
Support color: white
Average life: 35.000 hours
Led operative life: L90B10
LED type 2835 SMD - 120 LED / m
Selected bin color
Diffusion angle: 120 °
Minimum cutting section: 100 mm
Max extendable: 50 meters
Dimmable
Color rendering:> 80
Degree of protection: IP67, for outdoor use
Silicone sheath, hygroscopic, high dielectric power, low VOC content
Double insulation
Operating temperature: -25 +45°C
Storage temperature: -25 +45°C
Rear sticker: 3M
Material: 2-layer copper / polyamide
Support color: white
Average life: 35.000 hours
Led operative life: L90B10

Technical data

Articles and details

Article Led colour Colour temp. Volt Led type Led/m W/M LM/M LM/W IP
Energy label HVLRM120.WW Bianco caldo 3.000°K 230V 2835 SMD 120 18,5 1.800 100 67
Energy label HVLRM120.D Bianco diurno 4.000°K 230V 2835 SMD 120 18,5 1.800 100 67
Energy label HVLRM120.W Bianco freddo 6.000°K 230V 2835 SMD 120 18,5 1.800 100 67
