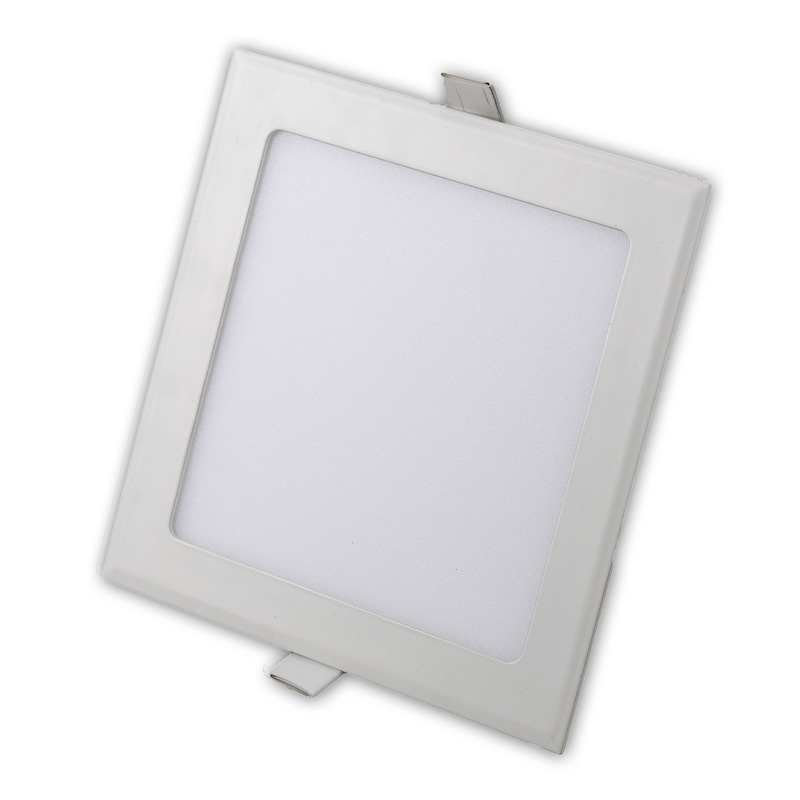

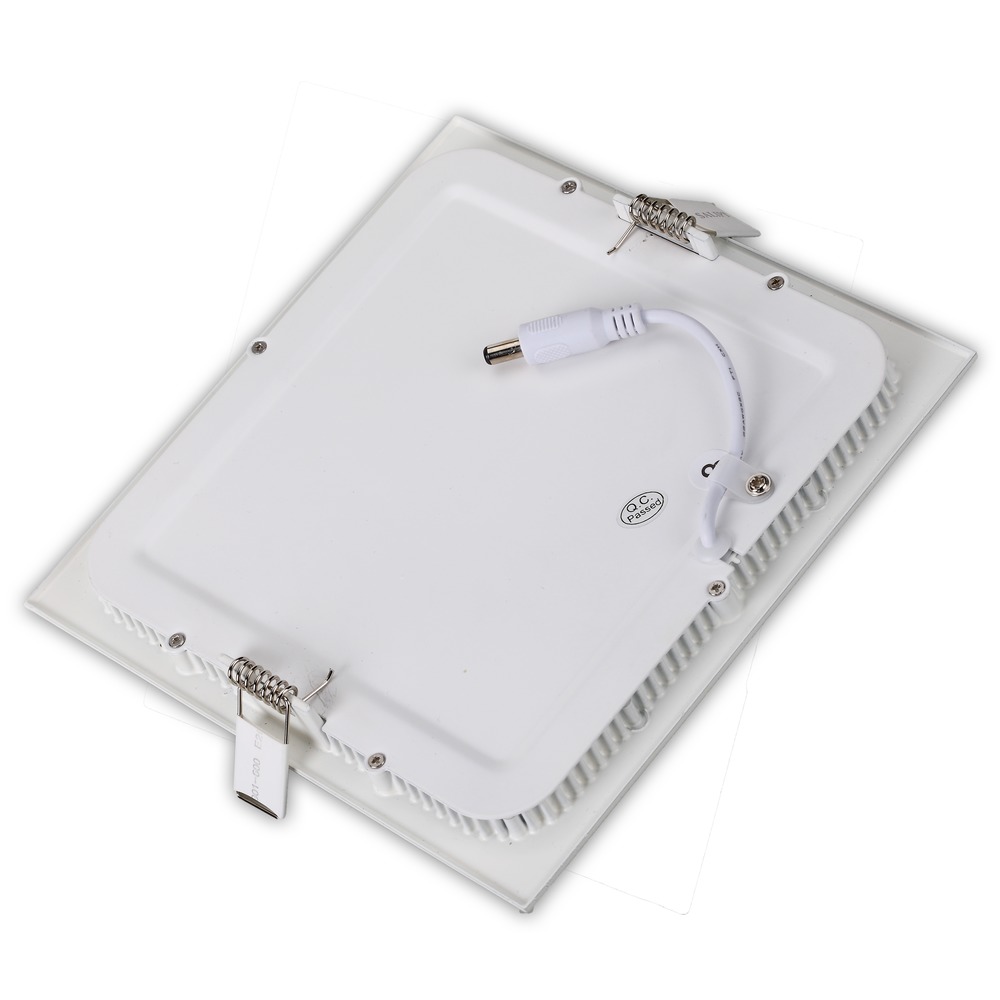

Ultra thin Led downlight for ceiling

IP20
CRI 80

CODE: SLIM SQUARE

Innovative panels ultrathin compact design.
They fit perfectly in any type of installation recessed and, thanks to the extremely small thickness, can also be used with extremely low ceilings.

• Can be used as an alternative to equipment with fluorescent lamps 60W and 80W
• Complete with separate power supply from the lamp
• Antiglear satin methacrylate diffuser
• Aluminium  white painted body
• Power supply: 220-240V ~ 50 / 60Hz
• Color rendering index:> 80
• Luminous efficiency: 75 lm / W
• Power factor:> 0.8
• Average life: 25,000 hours
• Working temperature: -20 ° C + 40 ° C
• Insulation class: II
• Protection degree: IP20
Innovative panels ultrathin compact design.
They fit perfectly in any type of installation recessed and, thanks to the extremely small thickness, can also be used with extremely low ceilings.

• Can be used as an alternative to equipment with fluorescent lamps 60W and 80W
• Complete with separate power supply from the lamp
• Antiglear satin methacrylate diffuser
• Aluminium  white painted body
• Power supply: 220-240V ~ 50 / 60Hz
• Color rendering index:> 80
• Luminous efficiency: 75 lm / W
• Power factor:> 0.8
• Average life: 25,000 hours
• Working temperature: -20 ° C + 40 ° C
• Insulation class: II
• Protection degree: IP20

Technical data

Articles and details

Article Dimensions Total consumption Color Luminous flux Angle of diffusion
SQ12.D 170x170x22mm 12W day light 4.000°K 900 lm 120° Acquista SQ12.D Ultra thin Led downlight for ceiling su HIPPO.PLACE
SQ12.WW 170x170x22mm 12W warm white 3.000°K 900 lm 120° Acquista SQ12.WW Ultra thin Led downlight for ceiling su HIPPO.PLACE
SQ18.WW 225x225x22mm 18W warm white 3.000°K 1500 lm 120° Acquista SQ18.WW Ultra thin Led downlight for ceiling su HIPPO.PLACE
