A++

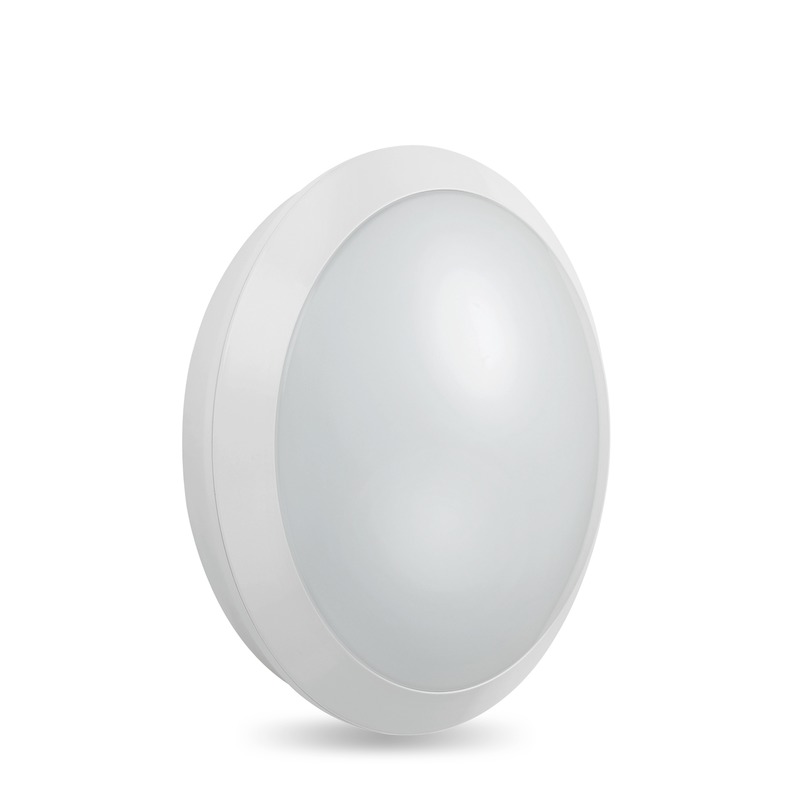

Led round ceiling lamp

A++
IP66
CRI 80

CODE: LUNA

Round ceiling lamps with LED technology.
Waterproof, for outdoor use.
Can be installed both ceiling and wall.
Round cabinets with integrated plate with high luminous LEDS for a uniform diffussion of light on the entire surface.
Body and diffuser in white high resistance polycarbonate.
Equipped with rear bracket for wall mounting.
Provided with brakeable hole for ∅ 16 mm tube.
Power supply: 230V ~ 50Hz
Colour rendering: > 80
Power factor: > 0,7
Average life: 30,000 hours
Operating temperature: -20°C +40°C
Insulation class: II
Beam angle: 120°
Protection degree: IP66, for outdoor use
Shockproof: IK10
Non dimmable

Power supply: 230V ~ 50Hz
Colour rendering: > 80
Power factor: > 0,7
Average life: 30,000 hours
Operating temperature: -20°C +40°C
Insulation class: II
Beam angle: 120°
Protection degree: IP66, for outdoor use
Shockproof: IK10
Non dimmable

Technical data

Articles and details

Article Dimensions Total consumption Color Luminous flux Angle of diffusion Weight
LN15.D Ø 300 x 95 mm 15 W day light 4.000°K 1.050 lm 120° 880 gr
LN15.WW Ø 300 x 95 mm 15 W warm white 3.000°K 1.000 lm 120° 880 gr
LN25.D Ø 360 x 105 mm 25 W day light 4.000°K 1.900 lm 120° 1.280 gr
LN25.WW Ø 360 x 105 mm 25 W warm white 3.000°K 1.800 lm 120° 1.280 gr
